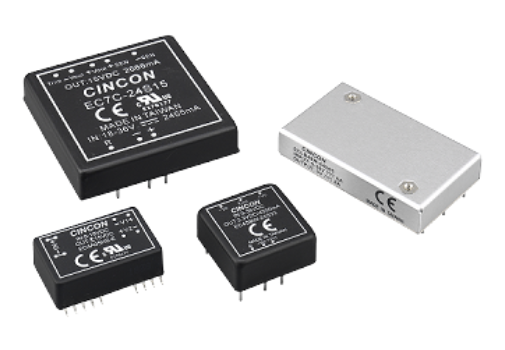

CINCON電源模塊DIP / SMD 3-75W

發布時間：2020-11-13 14:29:38     瀏覽：2256

CINCON電源公司設計和制造了3W-75WDC/DC轉換器，具有工業標準和引腳布置的特點。CINCON電源模塊DIP / SMD 3-75W具有效率高、工作溫度高、輸入范圍廣的特點。CINCON電源還為各種應用提供了非隔離和高度隔離的DC/DC變換器。

深圳市立維創展科技有限公司是CINCON電源模塊的分銷商，提供CINCON電源模塊直流電、交直流電源、LED電源等，原產品進口，質量保證，價格優勢，歡迎咨詢。

詳情了解CINCON電源請點擊：http://m.liaoyuan999.com/article/2177.html


2:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC3A

3W

4.5~6V, 9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC3AB

3W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
EN55022 Class B
UL60950-1

1.25x0.80x0.50(DIP24)
1.25x0.80x0.55(SMD24)


EC3A-E

3W

4.5~9V, 9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
EN55022 Class A
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
1.25×0.80x0.41(SMD24)


EC4A

6W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC4AB

6W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
EN55022 Class B
UL60950-1

1.25x0.80x0.50(DIP24)
1.25x0.80x0.55(SMD24)


EC4A-E

6W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
EN55022 Class A
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
1.25×0.80x0.41(SMD24)


EC6A

7.5W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC2SB

10W

4.7~9V, 9~18V, 18~36V, 36~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)
1.00x1.00x0.36(SMD)


EC4BE

10W

9~18V, 18~36V, 36~72V

5V, 12V, 15V, ±5V, ±12V, ±15V

500Vdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC4BU

10W

4.7~9V, 9~18V, 18~36V, 36~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC7A

10W

9~18V, 18~36V, 36~75V

2.5V, 3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC3SB

15W

9~18V, 18~36V, 36~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)
1.00x1.00x0.36(SMD)


EC5BU

15W

9~18V, 18~36V, 36~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC5BE

15W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500Vdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC7B

20W

9~18V, 18~36V, 36~75V

1.8V, 2.5V, 3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

2.00x1.00x0.40(DIP)


EC6C

30W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, 5/±12V, 5/±15V, ±5V, ±12V, ±15V

500Vdc Isolation
EN60950-1

2.00x2.00x0.40(DIP)


EC7C

40W

9~18V, 18~36V, 36~75V

2.5V, 3.3V, 5V, 12V, 15V, 3.3/5V, 3.3/±12V, 3.3/±15V, 5/±12V, 5/±15V, ±12V, ±15V

1.5KVdc Isolation
EN60950-1

2.00x2.00x0.40(DIP)

4:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC3AW

3W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC4AW

6W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC6AW

8W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN50155 Compliant

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC2SBW

10W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC4BW

10W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500Vdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC6AW-110

10W

43~160V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

1.25x0.80x0.50(DIP24)


EC8AW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

1.25x0.80x0.40(DIP24)


EC3SBW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC5BW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC5C

15W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, 5/±12V, 5/±15V, ±5V, ±12V, ±15V

500Vdc Isolation
EN60950-1

2.00x2.00x0.40(DIP)


EC1SC

20W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

EN55022 Class A

2.00×1.60×0.45(DIP)


EC4SBW

20W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC7BW-110

20W

43~160V

5V, 12V, 15V, ±12V, ±15V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)


EC7BW

20W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

NRND

EC3SCW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V

1.5KVdc Isolation
EN60950-1

2.00×1.60×0.40(DIP)


EC5SBW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC9BW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

2.00x1.00x0.40(DIP)


ECLB40W

40W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)


ECLB40W-110

40W

43~160V

3.3V, 5V, 12V, 15V, ±12V, ±15V, ±24V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.05x1.20x0.40(DIP)


ECLB60W

60W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

NEW

ECLB75W

75W

18~75V, 9~36V

5V, 12V, 15V, ±12V, ±15V, ±24V

2.25KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

18:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

EC7BW18

20W

8.5~160V

12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
UL62368-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

High Isolation 6KV


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC4AW-H6

5-6W

9-36V, 18-72V

5V, 12V, +/-12V, +/-15V

6KVdc Isolation
EN55022 Class A
5uA Leakage Current

1.25x0.80x0.40
(DIP24)

+/-10% Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC3AE

3W

5V, 12V, 24V, 28V, 48V

12V, 15V, 5V, ±12V, ±15V


1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
