Features
380 – 520 MHz
Low Loss
High Isolation
Tight Amplitude Balance
90 deg Quadrature
Surface Mountable
CTE Matched
NMT 450 Band
Tape and Reel Option
Specifications

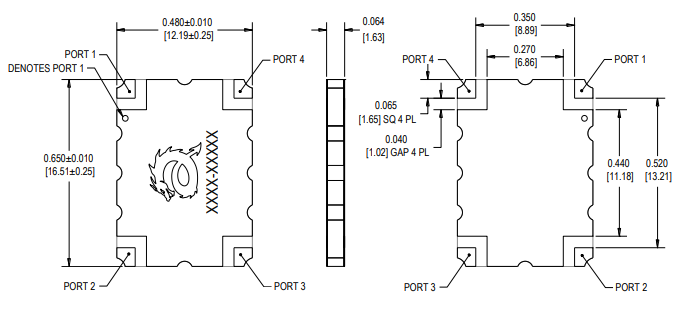

Size: .650 x .480 inches
Frequency: 380-520 MHz
Power: 200 W
Insertion Loss: .20 dB
Amplitude Balance: ± .3
Isolation: 25 dB
VSWR: 1.18
Phase Balance: ± 2
