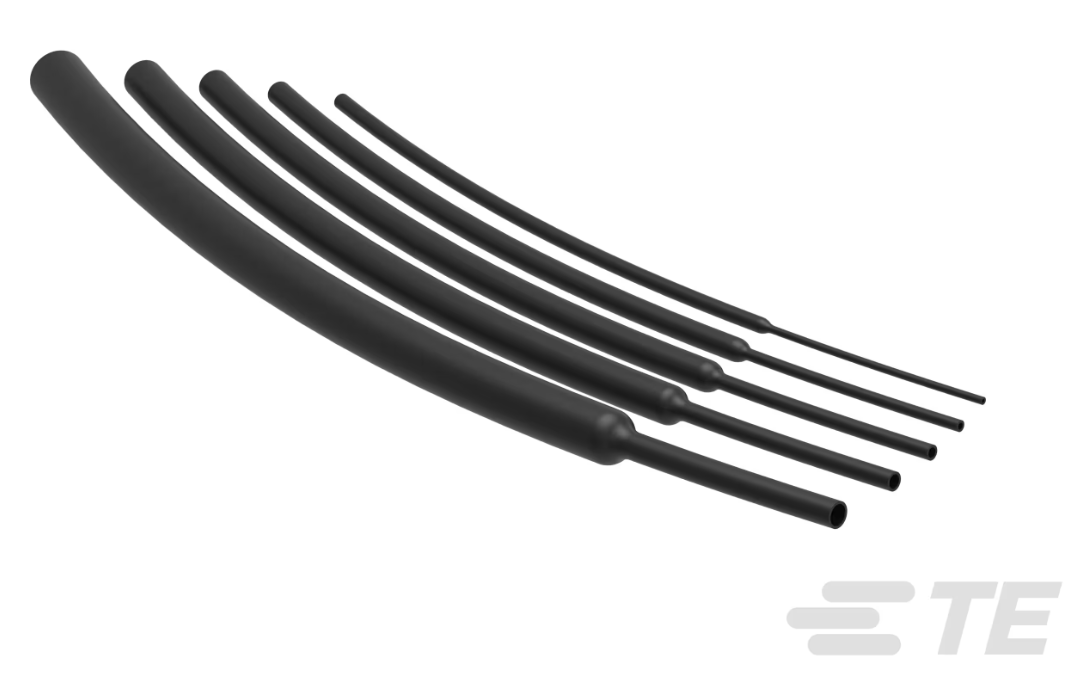

產品特性
主要產品顏色: 黑色
墻面類型: 單壁
收縮率: 2:1
熱縮管易燃性類型: 阻燃
工作溫度范圍(°C): -55 – 135
工作電壓(最大值)：0.6kV
靈活性：半柔性, 柔性
恢復的壁厚(公差) (mm) ：.08, .12, .15, .16, .2, .23, .25, .31, .36, .38, .51,
.64
恢復的壁厚(公差) (in) ： .003, .005, .006, .007, .008, .009, .01, .012, . 013,
.014, .015, .02, .025
恢復的壁厚(標稱) (mm) ： .4, .43, .5, .51, .64, .76, .88, .89, 1.01, 1.14, 1.27,
1.4
恢復的壁厚(標稱) (in) ： .016, .017, .02, .025, .03, .035, .04, .045, .05, .
055
產品長度 (mm)：12.7, 25.4, 30, 33, 38, 38.1, 40, 50, 50.8, 57.15, 60, 63.5, 75,
80, 120, 250, 342, 514.35, 556, 570, 640, 675, 1220
產品長度 (in)“ .5, 1, 1.181, 1.299, 1.496, 1.5, 1.575, 1.969, 2, 2.25, 2.362,
2.5, 2.953, 3.15, 4.724, 9.843, 13.464, 20.25, 21.89, 22.441, 25.197, 26.574,
48.03, 48.031
原始內徑(最小值) (mm)” .56, .81, 1.17, 1.6, 2.36, 3.17, 4.74, 6.35, 9.5, 12.7,
19.05, 25.4, 31.75, 38.1, 50.8, 76.2, 101.6
原始內徑(最小值) (in) .022, .032, .046, .063, .093, .125, .187, .25, . 374, .375,
.5, .75, 1, 1.25, 1.5, 2, 3, 4
收縮后內徑(最大值) (mm) .33, .4, .58, .79, 1.17, 1.57, 2.36, 3.17, 4.74, 6.35, 9.5,
12.7, 15.88, 19.05, 25.4, 38.1, 50.8
收縮后內徑(最大值) (in) .013, .016, .023, .031, .046, .062, .093, .125, . 187, .25,
.374, .5, .625, .75, 1, 1.5, 2
熱縮管尺寸范圍 (mm) .58 - 1.17, .79 - 1.6, 1.17 - 2.36, 1.57 - 3.17, 2.36 - 4.74,
3.17 - 6.35, 4.74 - 9.5, 6.35 - 12.7, 6.4 - 12.7, 9.5 - 19.05, 12.7 - 25.4,
15.88 - 31.75, 19.05 - 38.1, 25.4 - 50.8, 38.1 - 76.2, 50.8 - 101.6
熱縮管尺寸范圍 (in) .023 - .046, .031 - .063, .046 - .093, .062 - . 125, .093 -
.187, .125 - .25, .187 - .374, .25 - . 5, .374 - .75, .5 - 1, .625 - 1.25, .75 -
1.5, 1 - 2, 1.5 - 3, 2 - 4
型號：
| 型號 | Marketing Part Number | 原始內徑（最小值） | 收縮后內徑（最大值) | 封裝方法 | 熱縮管尺寸范圍 |
| RNF-100-1/2-BK-FSP | NB12724001 | 12.7 mm | 6.35 mm | Reel | 6.4 – 12.7 mm |
| RNF-100-1/2-BK-SP | NB12744001 | 12.7 mm | 6.35 mm | Reel | 6.4 – 12.7 mm |
| RNF-100-1/2-BK-STK | NB12762001 | 12.7 mm | 6.35 mm | 袋和盒 | 6.4 – 12.7 mm |
| RNF-100-1/2R-BK-STK | NB12892001 | 12.7 mm | 6.35 mm | 袋和盒 | 6.4 – 12.7 mm |
| RNF-100-1-BK-FSP | NB13034001 | 25.4 mm | 12.7 mm | Reel | 12.7 – 25.4 mm |
| RNF-100-1-BK-SP | NB13044001 | 25.4 mm | 12.7 mm | Reel | 12.7 – 25.4 mm |
| RNF-100-1-BK-STK | NB13052001 | 25.4 mm | 12.7 mm | 袋和盒 | 12.7 – 25.4 mm |
| RNF-100-3/4-BK-FSP | NB13264001 | 19.05 mm | 9.5 mm | Reel | 9.5 – 19.05 mm |
| RNF-100-3/4-BK-SP | NB13274001 | 19.05 mm | 9.5 mm | Reel | 9.5 – 19.05 mm |
| RNF-100-3/4-BK-STK | NB13282001 | 19.05 mm | 9.5 mm | 袋和盒 | 9.5 – 19.05 mm |
| RNF-100-3/4R-BK-STK | NB13392001 | 19.05 mm | 9.5 mm | 袋和盒 | 9.5 – 19.05 mm |
| RNF-100-3/8-BK-FSP | NB13504001 | 9.5 mm | 4.74 mm | Reel | 4.74 – 9.5 mm |
| RNF-100-3/8-BK-SP | NB13524001 | 9.5 mm | 4.74 mm | Reel | 4.74 – 9.5 mm |
| RNF-100-3/8-BK-STK | NB13542001 | 9.5 mm | 4.74 mm | 袋和盒 | 4.74 – 9.5 mm |
| RNF-100-3/64-BK-STK | NB15492001 | 1.17 mm | .58 mm | 袋和盒 | .58 – 1.17 mm |
| RNF-100-1-1/2-BK-SP | NB17914001 | 38.1 mm | 19.05 mm | Reel | 19.05 – 38.1 mm |
| RNF-100-1-1/2-BK-STK | NB17932001 | 38.1 mm | 19.05 mm | 袋和盒 | 19.05 – 38.1 mm |
| RNF-100-1-1/4-BK-SP | NB18084001 | 31.75 mm | 15.88 mm | Reel | 15.88 – 31.75 mm |
| RNF-100-1-1/4-BK-STK | NB18092001 | 31.75 mm | 15.88 mm | 袋和盒 | 15.88 – 31.75 mm |
| RNF-100-2-BK-SP | NB18144001 | 50.8 mm | 25.4 mm | Reel | 25.4 – 50.8 mm |
| RNF-100-2-BK-STK | NB18162001 | 50.8 mm | 25.4 mm | 袋和盒 | 25.4 – 50.8 mm |
| RNF-100-3-BK-SP | NB18284001 | 76.2 mm | 38.1 mm | Reel | 38.1 – 76.2 mm |
| RNF-100-3-BK-STK | NB18302001 | 76.2 mm | 38.1 mm | 袋和盒 | 38.1 – 76.2 mm |
| RNF-100-4-BK-SP | NB18434001 | 101.6 mm | 50.8 mm | Reel | 50.8 – 101.6 mm |
| RNF-100-4-BK-STK | NB18442001 | 101.6 mm | 50.8 mm | 袋和盒 | 50.8 – 101.6 mm |
| RNF-100-1/16-BK-STK | NB18742001 | 1.6 mm | .79 mm | 袋和盒 | .79 – 1.6 mm |
| RNF-100-1/4-BK-STK | NB18932001 | 6.35 mm | 3.17 mm | 袋和盒 | 3.17 – 6.35 mm |
| RNF-100-1/8-BK-STK | NB19162001 | 3.17 mm | 1.57 mm | 袋和盒 | 1.57 – 3.17 mm |
| RNF-100-3/16-BK-STK | NB19392001 | 4.74 mm | 2.36 mm | 袋和盒 | 2.36 – 4.74 mm |
| RNF-100-3/32-BK-STK | NB19642001 | 2.36 mm | 1.17 mm | 袋和盒 | 1.17 – 2.36 mm |
| RNF-100-3/8-BK-BULK-SP | NB22664001 | 9.5 mm | 4.74 mm | Reel | 4.74 – 9.5 mm |
| RNF-100-1-1/2-BK-STK | RNF-100-1-1/2-BK-STK | 38.1 mm | 19.05 mm | 桿 | 19.05 – 38.1 mm |
| RNF-100-1-1/4-BK-STK | RNF-100-1-1/4-BK-STK | 31.75 mm | 15.88 mm | 桿 | 15.88 – 31.75 mm |
| RNF-100-1/16-BK-80MM | RNF-100-1/16-BK-80MM | 1.6 mm | .79 mm | 零件 | .79 – 1.6 mm |
| RNF-100-1/2-A1-BK-120MM | RNF-100-1/2-A1-BK-120MM | 12.7 mm | 6.35 mm | 零件 | 6.4 – 12.7 mm |
| RNF-100-1/2-A1-BK-40MM | RNF-100-1/2-A1-BK-40MM | 12.7 mm | 6.35 mm | 零件 | 6.4 – 12.7 mm |
| RNF-100-1/2-BK-1.5IN | RNF-100-1/2-BK-1.5IN | 12.7 mm | 6.35 mm | 零件 | 6.4 – 12.7 mm |
| RNF-100-1/2-BK-20.25IN | RNF-100-1/2-BK-20.25IN | 12.7 mm | 6.35 mm | Box | 6.4 – 12.7 mm |
| RNF-100-1/2-BK-33MM | RNF-100-1/2-BK-33MM | 12.7 mm | 6.35 mm | 零件 | 6.4 – 12.7 mm |
| RNF-100-1/2-BK-50MM | RNF-100-1/2-BK-50MM | 12.7 mm | 6.35 mm | 零件 | 6.4 – 12.7 mm |
| RNF-100-1/2-BK-570MM | RNF-100-1/2-BK-570MM | 12.7 mm | 6.35 mm | Box | 6.4 – 12.7 mm |
| RNF-100-1/2-BK-640MM | RNF-100-1/2-BK-640MM | 12.7 mm | 6.35 mm | 零件 | 6.4 – 12.7 mm |
| RNF-100-1/2-BK-675MM | RNF-100-1/2-BK-675MM | 12.7 mm | 6.35 mm | 零件 | 6.4 – 12.7 mm |
| RNF-100-1/2-BK-FSP | RNF-100-1/2-BK-FSP | 12.7 mm | 6.35 mm | 平滑卷 |
|
| RNF-100-1/2-BK-FSP-250KFT | RNF-100-1/2-BK-FSP-250KFT | 12.7 mm | 6.35 mm | Reel | 6.4 – 12.7 mm |
| RNF-100-1/4-BK-1IN | RNF-100-1/4-BK-1IN | 6.35 mm | 3.17 mm | 零件 | 3.17 – 6.35 mm |
| RNF-100-1/4-BK-38MM | RNF-100-1/4-BK-38MM | 6.35 mm | 3.17 mm | 零件 | 3.17 – 6.35 mm |
| RNF-100-1/4-BK-75MM | RNF-100-1/4-BK-75MM | 6.35 mm | 3.17 mm | 零件 | 3.17 – 6.35 mm |
| RNF-100-1/4-BK-SP-SH | RNF-100-1/4-BK-SP-SH | 6.35 mm | 3.17 mm | Reel | 3.17 – 6.35 mm |
| RNF-100-1/8-BK-2IN | RNF-100-1/8-BK-2IN | 3.17 mm | 1.57 mm | Box | 1.57 – 3.17 mm |
| RNF-100-1/8-BK-60MM | RNF-100-1/8-BK-60MM | 3.17 mm | 1.57 mm | Box | 1.57 – 3.17 mm |
| RNF-100-1/8-BK-STK-SH | RNF-100-1/8-BK-STK-SH | 3.17 mm | 1.57 mm | 袋和盒 | 1.57 – 3.17 mm |
| RNF-100-2-BK-342MM | RNF-100-2-BK-342MM | 50.8 mm | 25.4 mm | Box | 25.4 – 50.8 mm |
| RNF-100-2-BK-STK | RNF-100-2-BK-STK | 50.8 mm | 25.4 mm | 桿 | 25.4 – 50.8 mm |
| RNF-100-3/16-BK-0.5IN | RNF-100-3/16-BK-0.5IN | 4.74 mm | 2.36 mm | 零件 | 2.36 – 4.74 mm |
| RNF-100-3/16-BK-50MM | RNF-100-3/16-BK-50MM | 4.74 mm | 2.36 mm | 零件 | 2.36 – 4.74 mm |
| RNF-100-3/16-BK-SP-SH | RNF-100-3/16-BK-SP-SH | 4.74 mm | 2.36 mm | Reel | 2.36 – 4.74 mm |
| RNF-100-3/4-3X-A1-BK-50MM | RNF-100-3/4-3X-A1-BK-50MM | 19.05 mm | 9.5 mm | Box | 9.5 – 19.05 mm |
| RNF-100-3/4-A1-BK-30MM | RNF-100-3/4-A1-BK-30MM | 19.05 mm | 9.5 mm | 零件 | 9.5 – 19.05 mm |
| RNF-100-3/4-A1-BK-40MM | RNF-100-3/4-A1-BK-40MM | 19.05 mm | 9.5 mm | 零件 | 9.5 – 19.05 mm |
| RNF-100-3/4-A1-BK-50MM | RNF-100-3/4-A1-BK-50MM | 19.05 mm | 9.5 mm | 零件 | 9.5 – 19.05 mm |
| RNF-100-3/4-BK-2.25IN | RNF-100-3/4-BK-2.25IN | 19.05 mm | 9.5 mm | Box | 9.5 – 19.05 mm |
| RNF-100-3/4-BK-2.5IN | RNF-100-3/4-BK-2.5IN | 19.05 mm | 9.5 mm | 零件 | 9.5 – 19.05 mm |
| RNF-100-3/4-BK-250MM | RNF-100-3/4-BK-250MM | 19.05 mm | 9.5 mm | Box | 9.5 – 19.05 mm |
| RNF-100-3/4-BK-STK-SH | RNF-100-3/4-BK-STK-SH | 19.05 mm | 9.5 mm | 袋和盒 | 9.5 – 19.05 mm |
| RNF-100-3/8-A1-BK-30MM | RNF-100-3/8-A1-BK-30MM | 9.5 mm | 4.74 mm | 零件 | 4.74 – 9.5 mm |
| RNF-100-3/8-BK-2.5IN | RNF-100-3/8-BK-2.5IN | 9.5 mm | 4.74 mm | 零件 | 4.74 – 9.5 mm |
| RNF-100-3/8-BK-556MM | RNF-100-3/8-BK-556MM | 9.5 mm | 4.74 mm | 零件 | 4.74 – 9.5 mm |
| RNF-100-3/8-BK-FSP | RNF-100-3/8-BK-FSP | 9.5 mm | 4.74 mm | 平滑卷 |
|
| RNF-100-3/8-BK-STK-SH | RNF-100-3/8-BK-STK-SH | 9.5 mm | 4.74 mm | 袋和盒 | 4.74 – 9.5 mm |
| RNF-100-MINI-SPL-1/2-BK | RNF-100-MINI-SPL-1/2-BK | 12.7 mm | 6.35 mm | 迷你卷 | 6.35 – 12.7 mm |
| RNF-100-MINI-SPL-1/4-BK | RNF-100-MINI-SPL-1/4-BK | 6.35 mm | 3.17 mm | 迷你卷 | 3.17 – 6.35 mm |
| RNF-100-MINI-SPL-1/8-BK | RNF-100-MINI-SPL-1/8-BK | 3.17 mm | 1.57 mm | 迷你卷 | 1.57 – 3.17 mm |
| RNF-100-MINI-SPL-3/16-BK | RNF-100-MINI-SPL-3/16-BK | 4.74 mm | 2.36 mm | 迷你卷 | 2.36 – 4.74 mm |
| RNF-100-MINI-SPL-3/32-BK | RNF-100-MINI-SPL-3/32-BK | 2.36 mm | 1.17 mm | 迷你卷 | 1.17 – 2.36 mm |
| RNF-100-MINI-SPL-3/4-BK | RNF-100-MINI-SPL-3/4-BK | 19.05 mm | 9.5 mm | 迷你卷 | 9.5 – 19.05 mm |
| RNF-100-MINI-SPL-3/64-BK | RNF-100-MINI-SPL-3/64-BK | 1.17 mm | .58 mm | 迷你卷 | .58 – 1.17 mm |
| RNF-100-MINI-SPL-3/8-BK | RNF-100-MINI-SPL-3/8-BK | 9.5 mm | 4.74 mm | 迷你卷 | 4.74 – 9.5 mm |
TE旗下的Raychem瑞侃產品是極其環境和條件下靠得住性的代名詞。Raychem是首家應用稱為“輻射化學”的斬新科學平臺常識來開辟產品的公司，Raychem系列產品在質料科學、工程和生產平臺一直處于環球當先職位。Raychem在航空航天、新能源汽車、產業自動化、通訊等平臺，Raychem一直闡揚出杰出靠得住的性能，而且正在發揮重要作用。
深圳市立維創展科技作為Raychem瑞侃代理商，提供Raychem瑞侃連接器現貨庫存，并具備國內外優勢渠道、價格優勢，歡迎咨詢。
