?Mi-Wave波導型 E 平面定向耦合器

發布時間：2023-07-20 16:58:17 瀏覽：1354

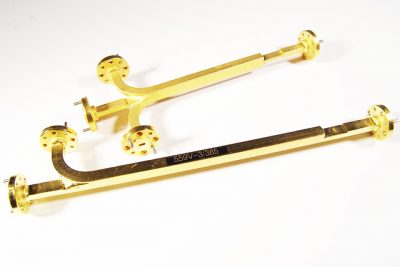

Mi-Wave的560系列寬帶定向耦合器是寬壁E平面多孔性能耦合設備。560系列定向耦合器提供一種高效率、便利的方式，專用于傳輸線路中傳遞的有限功率實現采樣或者把所需要信號引入線路中。

特征

?全波段使用

?規格緊湊型

?低駐波比

?穩固的構造

應用領域

?檢測系統

?發射裝置應用/假負載

?通訊衛星

?微波收音機

?源平衡

?5G和6G

Mi-Wave是商用型和軍工用毫米波產品全球領航者，可以提供毫米波器件和模塊解決方案。產品線涵蓋：放大器、混頻器、衰減器、濾波器、開關、T/R、天線、反射鏡等，所包含頻率高達320GHz.

深圳市立維創展科技有限公司授權代理銷售Mi-Wave毫米波產品，歡迎咨詢。

詳情了解Mi-Wave請點擊：http://m.liaoyuan999.com/brand/52.html

Model	Band	Frequency (GHz)	Insertion Loss(dB)	Directivity (dB)	Coupling (dB)	Coupling Accuracy (± dB)	Input/Output Port
560K-3/594	K-Band	18-26.5	1	40	3	1.5	WR-42 Waveguide, UG-595/U
560K-6/595	K-Band	18-26.5	1	40	6	1.5	WR-42 Waveguide, UG-595/U
560K-10/595	K-Band	18-26.5	1	40	10	1.5	WR-42 Waveguide, UG-595/U
560K-20/595	K-Band	18-26.5	1	40	20	1.5	WR-42 Waveguide, UG-595/U
560K-30/595	K-Band	18-26.5	1	40	30	1.5	WR-42 Waveguide, UG-595/U
560K-40/596	K-Band	18-26.5	1	40	40	1.5	WR-42 Waveguide, UG-595/U
560A-3/596	Ka-Band	26.5-40	1	40	3	1.5	WR-28 Waveguide, UG-599/U Flange
560A-6/597	Ka-Band	26.5-40	1	40	6	1.5	WR-28 Waveguide, UG-599/U Flange
560A-10/598	Ka-Band	26.5-40	1	40	10	1.5	WR-28 Waveguide, UG-599/U Flange
560A-20/599	Ka-Band	26.5-40	1	40	20	1.5	WR-28 Waveguide, UG-599/U Flange
560A-30/599	Ka-Band	26.5-40	1	40	30	1.5	WR-28 Waveguide, UG-599/U Flange
560A-40/598	Ka-Band	26.5-40	1	40	40	1.5	WR-28 Waveguide, UG-599/U Flange
560B-3/381	Q-Band	33-50	1	40	3	1	WR-22 Waveguide, UG-383 Flange
560B-6/382	Q-Band	33-50	1	40	6	1	WR-22 Waveguide, UG-383 Flange
560B-10/383	Q-Band	33-50	1	40	10	1	WR-22 Waveguide, UG-383 Flange
560B-20/383	Q-Bnad	33-50	1	40	20	1	WR-22 Waveguide, UG-383/U Flange
560B-30/383	Q-Band	33-50	1	40	30	1	WR-22 Waveguide, UG-383/U Flange
560B-40/382	Q-Band	33-50	1	40	40	1	WR-22 Waveguide, UG-383 Flange
560E-3/387	E-Band	60-90	1	40	3	1.5	WR-12 Waveguide, UG-387/U Flange
560E-3/385	E-Band	60-90	1	40	3	1.5	WR-12 Waveguide, UG-387/U Flange
560E-6/386	E-Band	60-90	1	40	6	1.5	WR-12 Waveguide, UG-387/U Flange
560E-10/387	E-Band	60-90	1	40	10	1.5	WR-12 Waveguide, UG-387/U Flange
560E-20/387	E-Band	60-90	1	40	20	1.5	WR-12 Waveguide, UG-387/U Flange
560E-30/387	E-Band	60-90	1	40	30	1.5	WR-12 Waveguide, UG-387/U Flange
560E-40/388	E-Band	60-90	1	40	40	1.5	WR-12 Waveguide, UG-387/U Flange
560U-3/383	U-Band	40-60	1	40	3	1.2	WR-19 Waveguide, UG-383/U-M Flange
560U-6/384	U-Band	40-60	1	40	6	1.2	WR-19 Waveguide, UG-383/U-M Flange
560U-10/383	U-Band	40-60	1	40	10	1.2	WR-19 Waveguide, UG-383/U-M Flange
560U-20/383	U-Band	40-60	1	40	20	1.2	WR-19 Waveguide, UG-383/U-M Flange
560U-30/384	U-Band	40-60	1	40	30	1.2	WR-19 Waveguide, UG-383/U-M Flange
560U-40/385	U-Band	40-60	1	40	40	1.2	WR-19 Waveguide, UG-383/U-M Flange
560V-3/385	V-Band	50-70	1	40	3	1.5	WR-15 Waveguide, UG-385/U Flange
560V-6/383	V-Band	50-70	1	40	6	1.5	WR-15 Waveguide, UG-385/U Flange
560V-10/384	V-Band	50-70	1	40	10	1.5	WR-15 Waveguide, UG-385/U Flange
560V-20/385	V-Band	50-70	1	40	20	1.5	WR-15 Waveguide, UG-385/U Flange
560V-30/385	V-Band	50-70	1	40	30	1.5	WR-15 Waveguide, UG-385/U Flange
560V-40/386	V-Band	50-70	1	40	40	1.5	WR-15 Waveguide, UG-385/U Flange
560W-3/385	W-Band	75-110	1	40	3	1.5	WR-10 Waveguide, UG-387/U-M Flange
560W-6/386	W-Band	75-110	1	40	6	1.5	WR-10 Waveguide, UG-387/U-M Flange
560W-10/387	W-Band	75-110	1	40	10	1.5	WR-10 Waveguide, UG-387/U-M Flange
560W-20/387	W-Band	75-110	1	40	20	1.5	WR-10 Waveguide, UG-387/U-M Flange
560W-30/387	W-Band	75-110	1	40	30	1.5	WR-10 Waveguide, UG-387/U-M Flange
560W-40/386	W-Band	75-110	1	40	40	1.5	WR-10 Waveguide, UG-387/U-M Flange
